Mesh texture

In olivine-rich rocks such as dunites and peridotites, serpentinization may or may not be complete. If the transformation is incomplete we can observe a serpentine mesh structure composed of a lattice work of longitudinally divided cross-fibre veins enclosing olivine cores. Each olivine grain may be divided into several cores which retain their original orientation without disturbance. Generally, the serpentine veins contain two parallel series of fibrous material separated by a black band of minute magnetite aggregates. If the transformation is complete, the inner parts of the mesh structure are filled by serpentine micro aggregates.

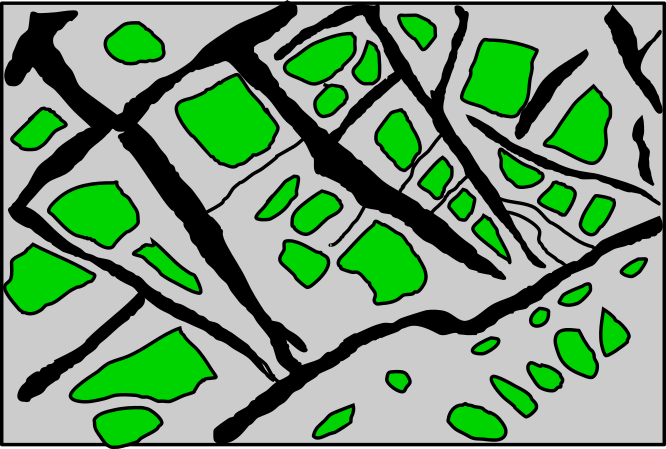

schematic representation of mesh texture. Grey = serpentine; green = olivine core; black = magnetite.
