Haüynophire

Hauynophyre: A volcanic rock name equivalent to leucitophyre or nephelinite for rocks that are rich in haüyne and nosean. The matrix may contain glass, pyroxene, haüyne and other foids.

The hauynophyre emitted from a parasitic vent of the Vulture stratovolcano is a S- and Cl-rich, leucite-melilite-bearing lava flow containing an unusually large amount of sodalite-group minerals (>23 vol.%). Melfi hauynophyre (locality n.1 in fig.1) is a holocrystalline rock with phenocrysts of hauyne, zoned salitic to ferrosalitic clinopyroxene, subordinate leucite and apatite in a groundmass made up of the same phases plus nepheline, Na+Fe-rich melilite and magnetite.

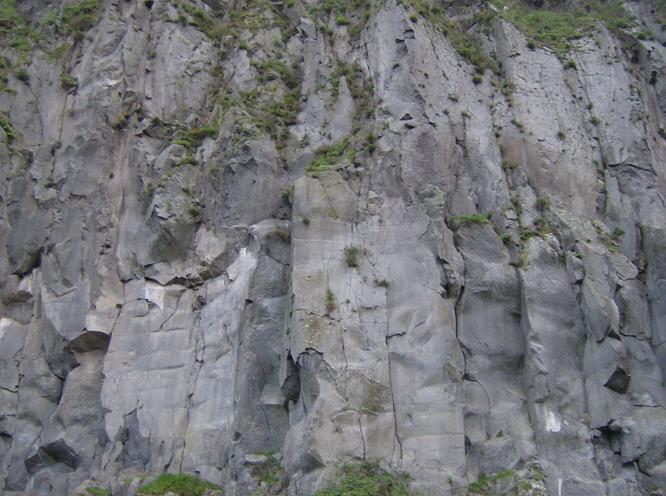

Haüynophire quarry with columnar jointing. Melfi, Italy. Photo by Alessandro da Mommio.

Haüne crystals in the Melfi Haüynophire. Photo by Alessandro da Mommio.

Haüne crystals in the Melfi Haüynophire. Photo by Alessandro da Mommio.

Bibliography

• Cox et al. (1979): The Interpretation of Igneous Rocks, George Allen and Unwin, London.
• Howie, R. A., Zussman, J., & Deer, W. (1992). An introduction to the rock-forming minerals (p. 696). Longman.
• Le Maitre, R. W., Streckeisen, A., Zanettin, B., Le Bas, M. J., Bonin, B., Bateman, P., & Lameyre, J. (2002). Igneous rocks. A classification and glossary of terms, 2. Cambridge University Press.
• Middlemost, E. A. (1986). Magmas and magmatic rocks: an introduction to igneous petrology.
• Shelley, D. (1993). Igneous and metamorphic rocks under the microscope: classification, textures, microstructures and mineral preferred-orientations.
• Vernon, R. H. & Clarke, G. L. (2008): Principles of Metamorphic Petrology. Cambridge University Press.


Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 1x (Field of view = 9mm)	Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 1x (Field of view = 9mm)	Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 1x (Field of view = 9mm)
Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 1x (Field of view = 9mm)	Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 1x (Field of view = 9mm)	Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 1x (Field of view = 9mm)
Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 1x (Field of view = 9mm)	Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 1x (Field of view = 9mm)	Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)
Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)	Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)	Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)
Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)	Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)	Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)
Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)	Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)	Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)
Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)	Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)	Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)
Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)	Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)	Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)
Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)	Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)	Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). XPL image, 2x (Field of view = 7mm)
Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). XPL image, 2x (Field of view = 7mm)	Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)	Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)
Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)	Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)	Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)
Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). XPL image, 2x (Field of view = 7mm)	Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)	Haüyne and clinopyroxene crystals. Melfi's Haüynophire (Italy). PPL image, 2x (Field of view = 7mm)
